Our solution

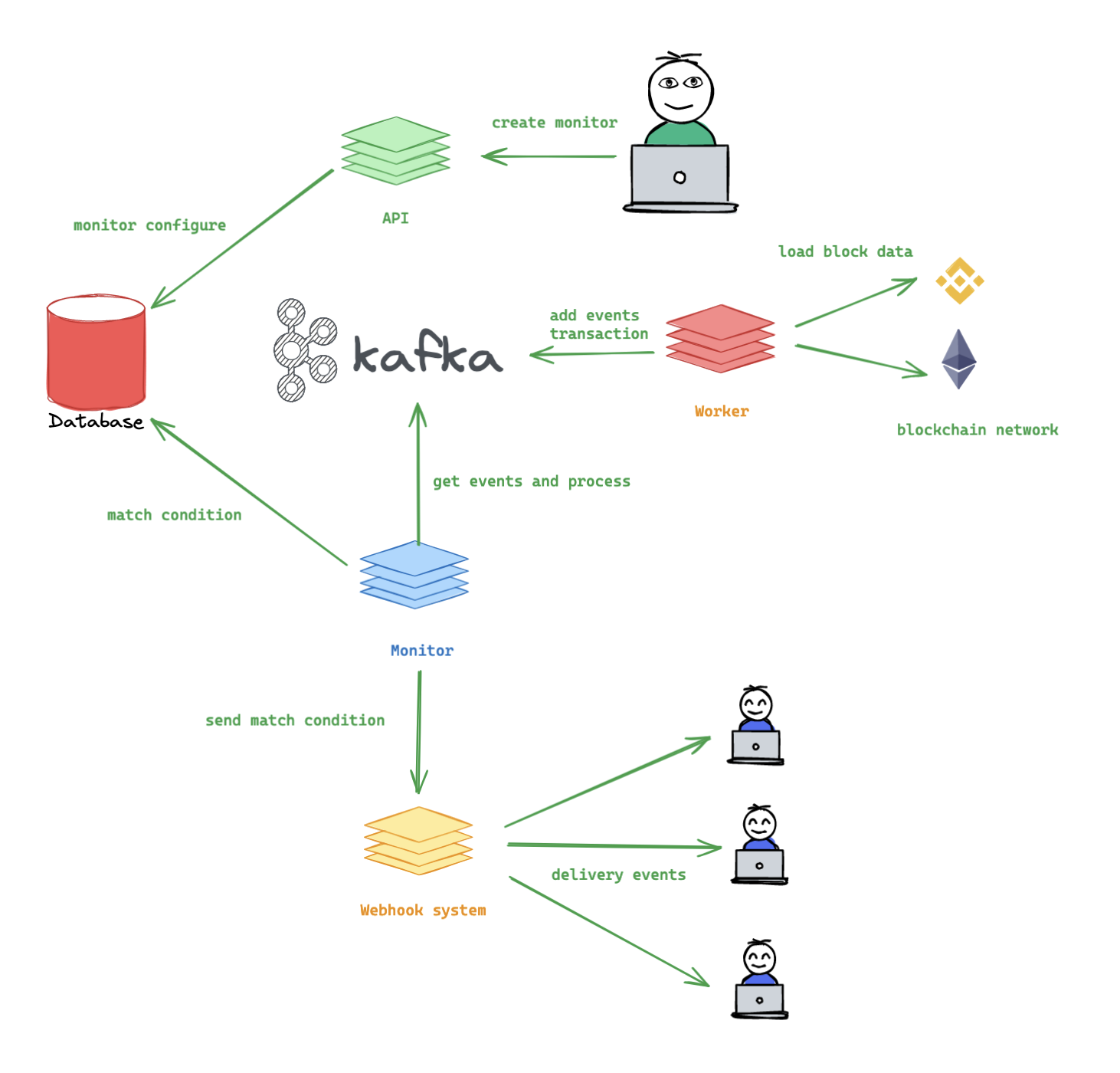

The following describes the workflow and components involved in our advanced Address Management System, as illustrated in the diagram.

Crypitor's workflow

Workflow Overview

  1. User Interaction:

    • Users create monitors through an API to track specific blockchain events or transactions.

  2. Worker Process:

    • The worker loads block data from the blockchain network (e.g., Ethereum, Binance Smart Chain).

    • Events and transactions from the blockchain are added to a Kafka queue for further processing.

  3. Event Processing:

    • Events are retrieved from the Kafka queue.

    • The monitor system processes these events to match predefined conditions set by the user.

  4. Data Management:

    • Matching conditions and event data are stored and managed within a database.

    • The monitor retrieves and processes stored data as per the user's configuration.

  5. Event Delivery:

    • The webhook system is used to send the matched events to the users.

    • Users receive notifications or data through the webhook, ensuring real-time updates.

Detailed Components

  1. API

    • Purpose: Allows users to create and configure monitors for specific blockchain events.

    • Interaction: Users interact with the API to set up monitoring conditions.

  2. Worker

    • Purpose: Loads block data from the blockchain network and adds events/transactions to the Kafka queue.

    • Interaction: Continuously communicates with the blockchain network to gather data.

  3. Kafka

    • Purpose: Acts as a message broker to handle event and transaction data flow.

    • Interaction: Queues events and transactions for processing by the monitor system.

  4. Monitor

    • Purpose: Processes events from Kafka, checks against user-defined conditions, and interacts with the database.

    • Interaction: Retrieves and processes data, matches conditions, and stores results in the database.

  5. Database

    • Purpose: Stores event data, user configurations, and matching conditions.

    • Interaction: The monitor reads from and writes to the database to manage event data and user configurations.

  6. Webhook System

    • Purpose: Delivers matched events to users in real-time.

    • Interaction: Sends notifications or data to users based on their configured monitors.
